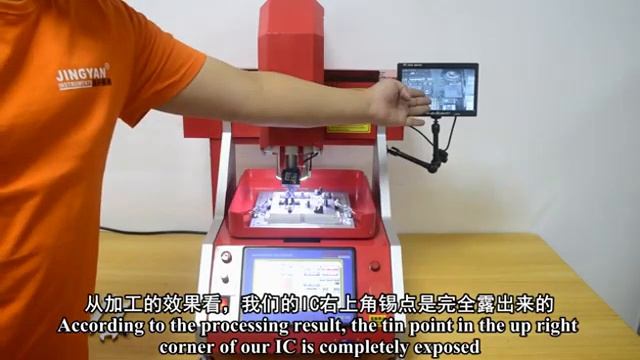

5-BGA 打磨機 iPhone 6 CPU A8 正打實例演示
系列7個視頻，全面介紹設備的使用方法 1- 配件清點 主機 配套模板 打磨刀頭 電源線等 2-二代打磨機的安裝 3-BGA 刀具的安裝，模板的更換 4-BGA 打磨機 打磨流程演示 5-BGA 打磨機 iPhone 6 CPU A8 正打實例演示 6-BGA 打磨機 iPhone 6 Plus CPU A8 反打實例演示 7-BGA 打磨機 如何新建打磨數據 專業打磨機 自研+7年市場驗證，方案成熟完美+最新全系列模具+文件支持 1- Inventory of accessories, host, supporting template, grinding head, power cord, etc. 2- Installation of the second generation grinding machine 3-BGA tool installation, template replacement 4-BGA Grinding Machine Grinding Process Demonstration 5-BGA grinding machine iPhone 6 CPU A8 is working on an example demonstration 6-BGA Grinding Machine iPhone 6 Plus CPU A8 Reverse Example Demonstration 7-How to create new grinding data for 7-BGA grinder Professional grinding machine Self-developed + 7 years of market verification, mature and perfect solution + latest full range of molds + document support Contact: Steve WhatsApp:+8615768564547 Wechat: 15768564547 八大核心特性 全新體驗 更智能 01 一體化整機操控 更專業 升級第二代，一體機設計，便捷的觸摸操作系統，是專業的自動化設備 02 智能控制系統 專業的智能控制系統,工能強大，已經申請版權證書,只需設置芯片尺寸， 就可以自動生成芯片研磨刀路，方便快速的打磨芯片 03 獨特的平面度檢測功能 平台內置精密感應器，全自動檢測芯片平面度,分析並產生曲面打磨數據， 解決因主板變形產生的打磨效果不理想問題。 多點檢測:自動檢測芯片四個角點和中間角點 適用於芯片打磨 04 新增便捷的深度檢測功能 開粗完,選擇深度檢測功能,可以先打磨一定深度，打磨外圍三週，當看到有任意一個角點漏出焊點後，可以通過平面度修正功能修正四個角點位置深度,哪邊還沒打到，微調對應角點深度數據即可，直到看到四個角點都有露出焊點，就可以一次性打磨完成，直觀，成功率高,基本不會打壞主板。 05 高清攝像頭 高清攝像頭,可以手動對焦,長時間打磨,更加方便清晰的分辨打磨IC層面至多少,便於了解加工深度等問題 06 SD卡存儲 智能SD卡存儲數據,已經保存了IC原點位置,芯片尺寸厚度等打磨參數據,方便參考使用,後續模板升級, 購買模板可免費提供打磨數據更新 07 滾珠絲槓台灣進口 整機進口台灣滾珠絲槓和方軌，精度穩定更耐用 08 高精度模板 -支持全系列 6-14PM , 可定制特殊應用模板。 專業加工中心生產高精度模板夾具,表面電鍍氧化處理，夾持穩定，方便實用。 Eight core features, new experience, smarter 01 Integrated machine control More Professional Upgraded to the second generation, all-in-one design, convenient touch operating system, is a professional automation equipment 02 Intelligent control system Professional intelligent control system, powerful work, has applied for copyright certificate, only need to set the chip size, The chip grinding tool path can be automatically generated, which is convenient and fast for grinding chips 03 Unique flatness detection function The platform has a built-in precision sensor, which can automatically detect the flatness of the chip, analyze and generate surface grinding data, Solve the problem of unsatisfactory grinding effect caused by the deformation of the main board. Multi-point detection: automatic detection of the four corners and middle corners of the chip Suitable for chip grinding 04 Added convenient depth detection function After roughing, select the depth detection function, you can first grind to a certain depth, and polish the periphery for three weeks. When you see any corner point leaking solder joints, you can use the flatness correction function to correct the depth of the four corner points. If you don’t hit it, just fine-tune the depth data of the corresponding corners until you see that all four corners have exposed solder joints, and you can finish polishing at one time. It is intuitive, has a high success rate, and basically will not damage the motherboard. 05 HD camera High-definition camera, manual focus, long-time grinding, more convenient and clear to distinguish the level of IC grinding, easy to understand the processing depth and other issues 06 SD card storage Smart SD card stores data, has saved the IC origin position, chip size thickness and other grinding parameters, which is convenient for reference and use, and the subsequent template upgrade, Polishing data updates are provided free of charge with the purchase of templates 07 Ball screw imported from Taiwan The whole machine is imported from Taiwan with ball screw and square rail, the precision is stable and more durable 08 High-precision formwork - supports a full range of 6-14PM, and can customize special application formwork. The professional processing center produces high-precision template fixtures, the surface is electroplated and oxidized, and the clamping is stable, convenient and practical.
