( Part - 4 ) 5.1 அசம்பிள் ஆம்ப்ளிபையர் செய்வது எப்படி ?

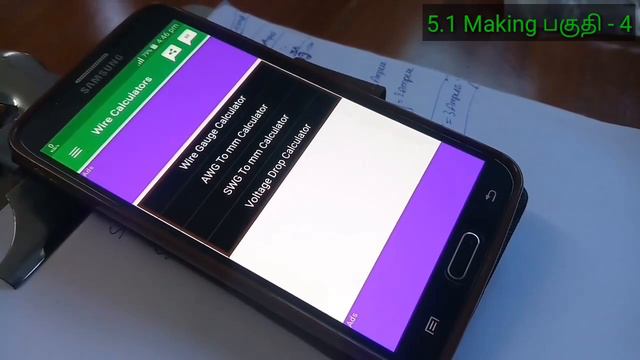

ஆம்ப்ளிபையர்-க்கு உள்ளே மற்றும் வெளியே உள்ள வயர்-ஐ ( Wire ) தேர்ந்தெடுப்பது எப்படி ? ( வயர் கேஜ் ) 1 ) 25 AWG - 7/37 ( SWG ) - 0.159 sq mm - 1.3 Ampere - ( Signal Wire From Pre Boards to Power Amp Board and Signal Coaxial Wire For FM ) 2 ) 24 AWG - 7/36 ( SWG ) - 0.198 sq mm - 1.5 Ampere - ( Power Supply - LED , FAN , USB BOARD) 3 ) 24 OR 25 AWG - 14/38 ( SWG ) - 0.200 sq mm - 2 Ampere - ( Power Supply - Pro Logic Board / Cut Boards, if , direct from power supply capacitor not from Audio Board ) 4 ) 23 AWG - 14/37 ( SWG ) - 0.234 sq mm - 2.5 Ampere - ( Audio Boards or speaker Wire , under 2 Ampere . Ex , IC 4440 , IC 7297 etc , . 5 ) 21 AWG - 14/36 ( SWG ) - 0.397 sq mm - 3 Ampere - ( Speaker Wire only for IC 2030 , IC 2050 etc , . 6 ) 19 AWG - 23/36 ( SWG ) - 0.623 sq mm - 6 Ampere - ( Speaker Wire . if , 5 Ampere Transformer ) 7 ) 1sq mm - 10 Ampere - ( Speaker Wire - if , 4 TRANSISTOR or FET used Amplifier When 8 or 10 Ampere Transformer used ) 8 ) 2 sq mm - 20 Ampere - ( Speaker Wire - if 6 TRANSISTOR or FET used Amplifier when 8 or 10 Ampere Transformer used ) 9 ) 2.5 sq mm - 25 Ampere - ( Input supply for 12 or 24 volt DC inverter Board ) RIBBON WIRE ( LD ) 7/36 ;- ( 36 AWG )( STRAND SIZE )0.0201 x ( NO OF STRANDS )7 = 0.1407 , Max 900 Milliampere RIBBON WIRE ( HD ) 14/36 ;- ( 36 AWG )( STRAND SIZE )0.0201 x ( NO OF STRANDS )14 = 0.2814 , Max 3.9 Ampere Ampere Normal Speaker Wire Size 7 Ampere to 10 Ampere 0.01 sq mm - 100 Milliampere 0.09 sq mm - 200 Milliampere 0.1 sq mm - 1 Ampere 0.2 sq mm - 2 Ampere 0.3 sq mm - 3 Ampere 0.4 sq mm - 4 Ampere 0.5 sq mm - 5 Ampere 0.6 sq mm - 6 Ampere 0.7 sq mm - 7 Ampere 0.8 sq mm - 8 Ampere 0.9 sq mm - 9 Ampere 1.0 sq mm - 10 Ampere 1.1 sq mm - 10.1 Ampere 2.1 sq mm - 20.1 Ampere ABOVE MENTIONED GAUGE AND AMPERE DIFFER FROM AC VOLT TO DC VOLT . So , Please Watch Full Video to Learn More . AWG CHART :- https://www.rapidtables.com/calc/wire/awg-to-mm.html SWG CHART :- https://www.rapidtables.com/calc/wire/swg-to-mm.html Mobile App :- https://play.google.com/store/apps/details?id=com.xtelltechnologies.wirecalculators Note :- Voltage Drop and Ohms , change , many create Sound Difference Learn with basics - அடிப்படைகளுடன் கற்றுக்கொள்ளுங்கள் COPYRIGHT DISCLAIMER Copyright Disclaimer under section 107 of the Copyright Act of 1976, allowance is made for “fair use” for purposes such as criticism, comment, news reporting, teaching, scholarship, education and research. Fair use is a use permitted by copyright statute that might otherwise be infringing.”
