Replace the Display Panel Hinges | HP 15-f000 Notebook PC series | HP

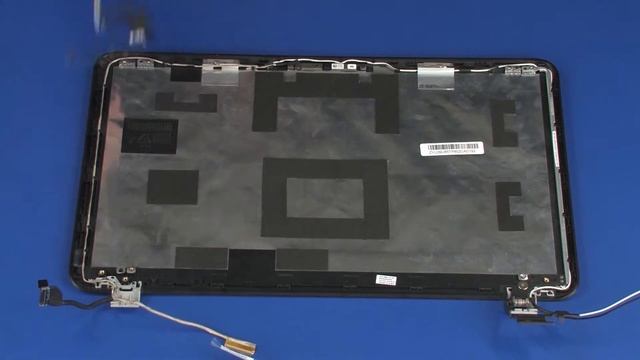

Learn how to replace the display panel hinges for HP 15-f000 Notebook PC series. For other helpful videos go to http://hp.com/supportvideos or http://youtube.com/hpsupport. More support options for your HP device are available at http://hp.com/support. Remove the battery, optical drive(if installed), service cover, wireless module, keyboard, top cover, display panel assembly, display bezel, and display panel. Removal – 1. Remove the 3 mm P1 Phillips broad-head screw that secures the left display panel hinge to the display enclosure. 2. Remove the 2.5 mm P1 Phillips-head screw that secures the left display panel hinge to the display enclosure. 3. Lift the left display panel hinge off of the alignment pins on the display enclosure and remove. 4. The right display panel hinge is removed in the same manner. Replacement - 1. Place the left display panel hinge onto the alignment pins on the display enclosure. 2. Replace the 2.5 mm P1 Phillips-head screw that secures the left display panel hinge to the display enclosure. 3. Replace the 3 mm P1 Phillips broad-head screw that secures the left display panel hinge to the display enclosure. 4. The right display panel hinge is replaced in the same manner. Caution: Improperly installing or replacing parts could damage your HP device or void your warranty. Before replacing any parts, check your warranty. Continue the Conversation: http://hp.care/SupportForums http://hp.care/FacebookSupport http://hp.care/TwitterSupport #HPSupport #HPComputerService #HPhomeLaptop #HP SUBSCRIBE: www.youtube.com/HPSupport SHOP NOW: https://www.hp.com/online-store HP PARTS STORE: https://parts.hp.com About HP: HP Inc. creates technology that makes life better for everyone everywhere - every person, every organization, and every community around the globe. Through our portfolio of printers, PCs, mobile devices, solutions, and services, we engineer experiences that amaze. Connect with HP: Visit HP WEBSITE: http://www.hp.com Like HP on FACEBOOK: https://www.facebook.com/HP Follow HP on TWITTER: https://twitter.com/HP Follow HP on INSTAGRAM: https://www.instagram.com/hp Follow HP on LINKEDIN: https://www.linkedin.com/company/hp This video was produced by HP.
