Cycle time relay Cyclic timer switch Delay ON OFF Repeater 1 to 120 Sec Min 12V - HK1583

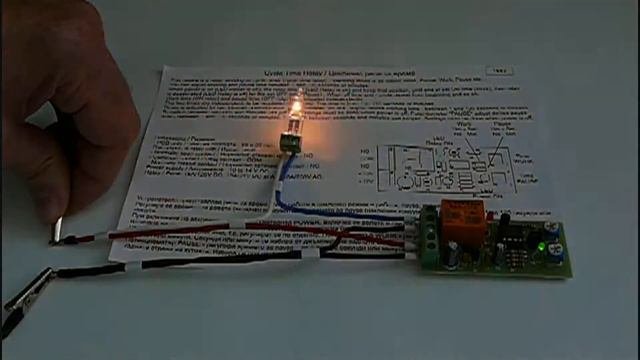

Cycle time relay Cyclic timer switch Delay ON OFF Repeater 1 to 120 Sec Min 12V - HK1583 This device is a relay, working as cyclic timer (cyclic time relay). Operating mode is as follow: Work, Pause, Work, Pause etc… You can adjust working and pause time between 1 and 120 seconds or minutes. PIC microcontoller. How it works: When power is on (LED Power is on), the relay closed (LED Relay is on) and keep that position, until end of set ON time (Work), then relay is deactivated (LED Relay is off) for the set OFF time (Pause). When off time end - cycle repeat from beginning and so on. Work time (ON relay) and pause time (OFF relay) are adjusted independently. The two times are independent, ie be regulated separately. Times is adjusted by two trimmer potentiometer. Potentiometer "WORK" adjust devise working time - between 1 and 120 seconds or minutes. To switch between seconds and minutes use jumper. Settings must be done when power is off. Potentiometer "PAUSE" adjust devise pause time - between 1 and 120 seconds or minutes. To switch between seconds and minutes use jumper. Settings must be done when power is off. Fully assembled. Device don't have plastic box, only PCB module, as see on the picture. Dimensions PCB - 68 x 30 mm. The output, is relay with: - Normally open contact - NO. - Common contact - COM. - Normally closed contact - NC. Power supply - 10 to 14V DC. Relay: 15A/125V DC, 15A/24V DC or AC, 10A/250V AC.
