DTC Ford U0100-87 Short Explanation

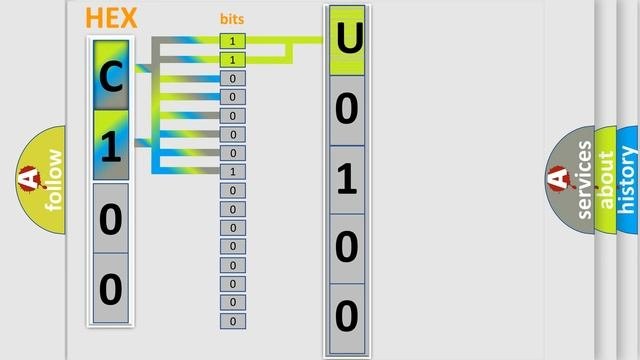

The video focuses on the basic Ford specific diagnostic error code. Contents: 0:21 Basic DTC analysis according to OBD2 protocol standard. 1:48 Insight into programming - an explanation of what a bit is and how a byte is formed - decoding the Error Code to the base programming 2:58 A diagnostically understandable description of the Diagnostic Trouble Code 3:05 Basic error definition - Possible causes or errors of the car and its parts describing the mentioned error We will continue to work on improving the content. Our efforts at Maxidot s.r.o.the video content gets better. #maxidot #dtc #howto #diagnostictroublecode #ford Make: Ford Code: U0100 87 Definition: Instrument Panel Cluster Voltage Low Input Description: DTC P1327 not set,engine started,engine speed over 1,500 rpm,and the PCM received a "low voltage" message on the Class 2 data line from the Instrument panel cluster (IPC).The IPC detected the system voltage was less than 10.5v for 30 seconds at the IP Cause: Check the operation of the Charging system (Generator)The charge indicator and driver warning message are set in the driver information center (DIC)IPC is damaged or has failed Failure Type: Missing Message This sub type is used for failures where one (or more) expected message(s) is not received, e.g., periodic transmission where the repetition time is too high, or message not received as a result of unforeseen reset events of the concerning component (e.g. engine control unit communicating with ABS).
