Red led cube 8x8x8 Светодиодный куб

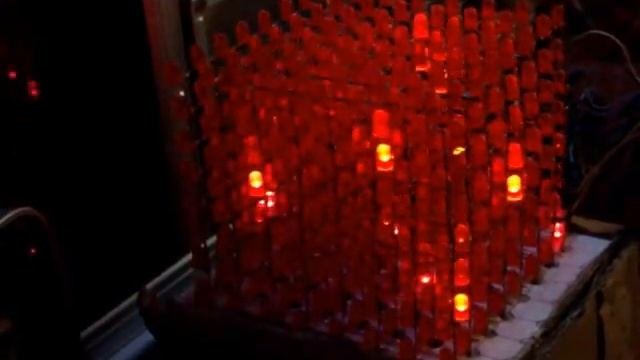

Red led cube 8x8x8 Светодиодный куб 8 x 74hc595n + uln2803 + arduino uno + 512 red leds & 64 x 220Ohm resisters. My scheme (Моя схема) - https://pp.vk.me/c604322/v604322296/3da04/zNYfeAePqwQ.jpg Arduino Code (Код для ардуино) - https://vk.com/doc15346296_439445672?hash=7dab8bd54622dc692c&dl=6184b5968675c6cf29 --------------------------------------------------------------------------- P.S. The Led matrix has been made from different parties of leds - superbright and no (I know, it's my lack and it's not good looking).
