Noise Analysis Op-Amp Circuit | Noninverting Amplifier | Calculation & SPICE Simulation | Example #

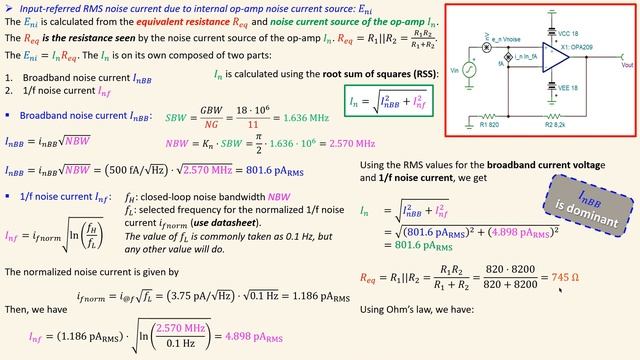

In this video, we will step by step workout the noise analysis of a noninverting amplifier using an op-amp (OPA209). We will use the noise model of the op-amp OPA209. We also check our calculations using simulations in TINA-TI SPICE. There are more examples of noise analysis using other passive circuits and active circuits, like RC circuit, single stage and multiple stage op-amp circuits. We also discuss how to reduce noise using averaging. See the playlist below for more! Playlist Electronic Noise Analysis: https://www.youtube.com/playlist?list=PLuUNUe8EVqlnQ_ZEBx9S6a6juISpYcdJW Playlist Operational Amplifier (Op-Amp) Noise Analysis: https://www.youtube.com/playlist?list=PLuUNUe8EVqlmMtas7s4G0Li201IakjT-- Playlist Instrumentation Amplifier Noise Analysis: https://www.youtube.com/playlist?list=PLuUNUe8EVqlknqQWFevG_00gFK6iTUxD4 Playlist Photodiode Amplifier Noise Analysis: https://www.youtube.com/playlist?list=PLuUNUe8EVqlnZM0gHx0uHI4EteuAU4DdU We follow a logical procedure and provide the solutions step by step such that it clear for you what and why we carry out a specific action. If you have questions or comments, please let me know. Help us to reach more people. Like and share this video. Subscribe to our channel: https://www.youtube.com/canbijles/?sub_confirmation=1 Tutoring in Mathematics, Physics, and Electrical Engineering Courses: W: http://www.canbijles.nl F: https://www.facebook.com/can.bijles E: [email protected] Copyright © ir. Mehmet Can No part of this video and text may be reprinted, reproduced, transmitted, or utilized in any form by any electronic, mechanical, or other means, now known or hereafter invented, including photocopying, microfilming, and recording, or in any information storage or retrieval system, without written permission from the owner. #noise #opamp #analog #bandwidth #noisefigure #singaltonoiseratio #SNR #electriccircuits #electronics #frequency #crosstalk #whitenoise #thermalnoise #inverting #amplifier #NoiseAnalysis #OperationalAmplifier #SpiceSimulations
