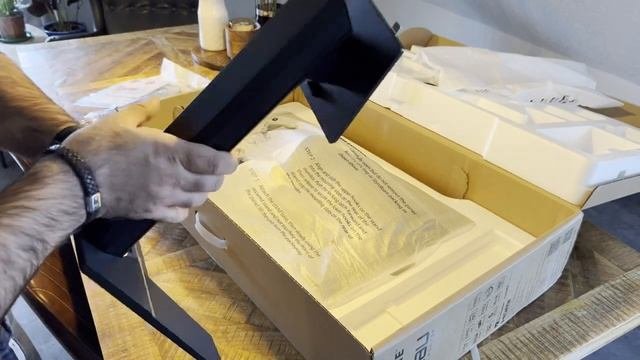

GIGABYTE M28U Unboxing and Stand Instlation
Monitor GIGABYTE M28U Panel Size (diagonal): 28" SS IPS Display Viewing Area (HxV): 631.928 x 359.78 (mm) Panel Backlight/ Type: Edge type Display Surface(non-glare/ glare): Non-glare Color Saturation: 94% DCI-P3/ 120% sRGB True Resolution : 3840 x 2160 (UHD) Pixel Pitch: 0.16 (H) x 0.16 (V) Brightness: 300 cd/m2 (TYP) Contrast Ratio: 1000:1 Viewing Angle: 178°(H)/178°(V) Display Colors: 8 bits Response Time: 1ms GTG / 2ms MPRT Refresh Rate: 144Hz / 120Hz for Console Game* HDR: VESA Display HDR400 Flicker-free: Yes HBR3: Yes Connectivity: HDMI 2.1 (support 4K 144Hz 4:4:4 @ DSC enabled or 4K 144Hz 4:2:0) x2 Display port 1.4 (DSC) x1 / USB Type-C x1 Earphone Jack : Yes Speaker: 3W x2 Unique Features: OSD Sidekick** Aim Stabilizer Sync: Black Equalizer KVM 6 axis Color Control Smart OD USB port(s): USB 3.0 x3 Power Type: Built-in AC Input Max: 115W Power Saving Mode: 0.5W Power Off Mode: 0.3W Voltage: AC 100-240V ~ 50/60Hz Tilt(angle): -5°~+20° Swivel(angle): N/A Pivot(angle/direction): N/A Height Adjustment (mm): 130mm VESA Wall Mounting(mm): 100*100mm Kensington lock: Yes Phys. Dimension with Stand(WxHxD): 636.5*534.2*193.6 Phys. Dimension w/o stand (WxHxD): 636.5*372.3*63.1 Box Dimension (WxHxD): 890*510*148 Net Weight with stand (Esti.): 6.93 (kg) Net Weight without stand (Esti.): 5.18 (kg) Gross Weight (Esti.): 9.7 (kg) Accessories Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card Note: *HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0) ** To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable.
