Tutorial Drive Monitor MOC (Part 4/9): Speed Cross Check | SICK AG

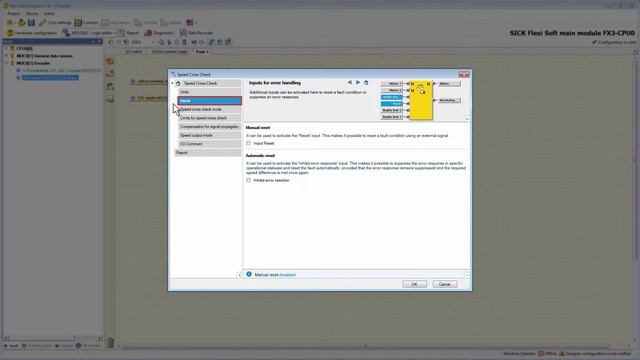

Quick jump to chapter: 1:03 General description of the motion function block "Speed Cross Check" 1:52 Description of the inputs of the "Speed Cross Check" 2:43 Description of the outputs of the "Speed Cross Check" 3:32 The MOC logic editor 4:10 Location of the function blocks and connection of the encoder signals to the "Speed Cross Check" 4:54 Start of the configuration of the "Speed Cross Check" 5:11 The configuration tab "Units" 5:31 The configuration tab "Inputs" 6:31 The configuration tab "Speed cross check mode" 6:54 The configuration tab "Limits for speed cross check" 8:02 The configuration tab "Compensation for signal propagation delay" 9:36 The configuration tab "Speed output mode" 9:58 The configuration tabs "I/O Comment" and "Report" More information: http://www.sickinsight-online.com/man-machine-interaction-safe-drive-monitoring-with-the-drive-monitor/ Product information: http://www.sick.com/drivemonitor Download Flexi Soft Designer: http://mysick.com/eCat.aspx?go=DataSheet&Cat=Row&At=Fa&Cult=English&ProductID=31648&Category=Software ------------------------------------------------------------------------------------- Subscribe to our YouTube channel and watch all videos from SICK: http://www.youtube.com/sicksensors ------------------------------------------------------------------------------------- For information and general inquiries please contact: SICK AG Erwin-Sick-Str. 1 79183 Waldkirch, Germany http://www.sick.com
