2.4GHZ Wireless RCA Transmitter & Receiver for Car Rearview Camera Video Monitor Mtz

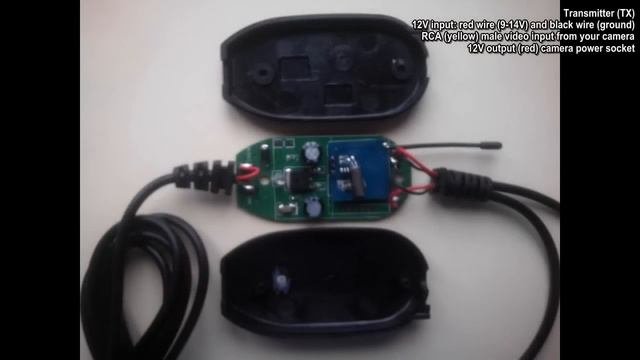

Here you can see the video received by a device with Composite video in: http://www.youtube.com/watch?v=nXKqc0GEPfw This wireless kit transmits and receives video at 2.4 GHz. Package includes: 1 x 2.4Ghz Transmitter (TX) 1 x 2.4Ghz Receiver (RX) Specifications: Transmitter (TX) - 12V input: red wire (9-14V) and black wire (ground) - RCA (yellow) male video input from your camera - 12V output (red) camera power socket Receiver (RX) - 5V input Mini USB socket - 2.5mm 4 pin jack plug Video Out - 5V Mini USB output Technical details: Operating frequency: 2370MHz Output power: 100mW Video: PAL / NTSC composite video signal Transmitter current: DC = 12V, 200mA Receiver current: DC = 5V, 250mA Receiver sensitivity: -85Dbm Signal noise ratio: 38dB Video output level: 1Vp-p@75ohm Unobstructed effective range: 90m (50m min.) Operating temperature: -20C~+60C / -4F~ +140F The quality of image may vary according to distance and wireless interferences.
