Mercedes W126 MY89 5.6L Fuel Pressure & Duty Cycle Test after 1 year of Big Repair & 3.7K driving

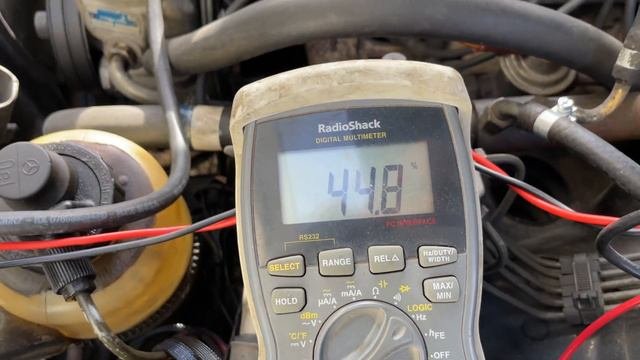

Since it was warm enough today, I figured I could do a system check to see if everything was still good after I did the big repair last year in January 2021. Note for the curious: I had my solder iron standing on the battery to heat up while I was doing this test and video. I replaced the connectors on the two wires for my mono valve after this test. The aux pump connectors are next inline with new connector housing. I have replaced / soldered app. 80 connector terminals in my engine bay so far and all connectors have gotten new connector housings. Now to the fuel pressure test: Control Pressure is at 6.15 Bar and differential is still at 0.4 Bar. I may have to replace or adjust my fuel pressure regulator. There is a Torx 27 (4.5mm) screw in the return port for adjustment. Clockwise increases control pressure, counter clockwise will decrease pressure. But, then I am using a low cost pressure tester ( around 85 bucks ) which could cause the 0.15 Bar increase. Otherwise, everything looks good considering the high mileage overall and that the heads were rebuilt 125K miles ago (2007)
